Facilities

To accelerate the implementation of chemical recycling, we have established various R&D and demonstration facilities.

Facilities

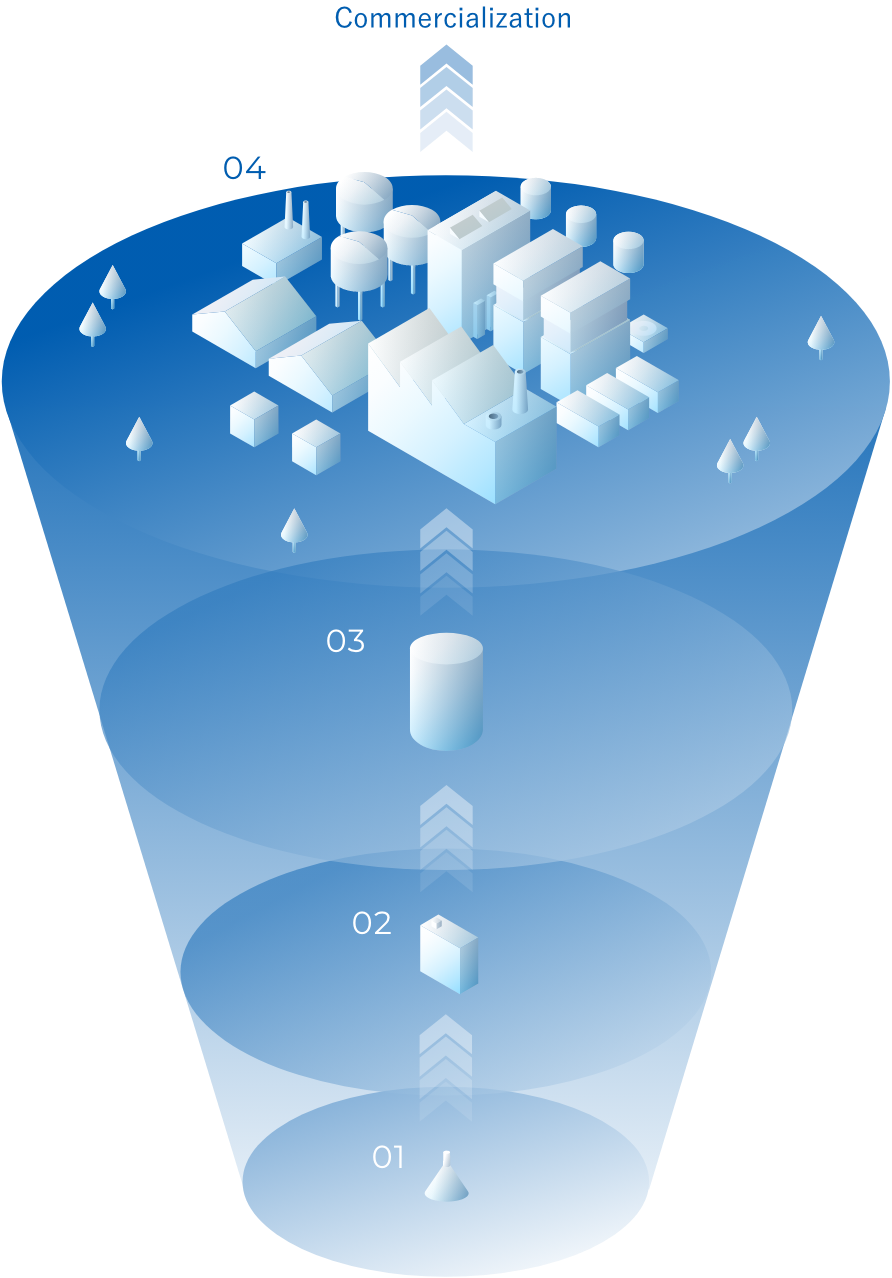

Similar to conventional scale-up processes, the development of the microwave process involves the following stages:
1.Lab-scale (a few grams) development
2.Bench/pilot-scale (a few kilograms or more) demonstration
3.Pilot-scale (tens of kilograms or more) demonstration
We gradually increase the processing capacity at each stage. Here, we will introduce the facilities for the lab, bench, and pilot scales.

  1. 01Lab-scale5~500 mL
    (flask level)

    Learn more
    in detail

  2. 02Bench-scale5~50 L
    (polytank level)

    Learn more
    in detail

  3. 03Pilot-scale50~250 L
    (drum level)

    Learn more
    in detail

  4. 04Commercial-scale500L over
    (plant level)

NEXTProjects

01 Lab-scale

PMMA分解マイクロ波パイロット設備

High electric field microwave equipment
Capacity: Several grams scale

プラスチック分解マイクロ波汎用パイロット設備 処理能力：1t/day程度

Electromagnetic field dispersing microwave equipment
Capacity: Up to 100 grams scale

02 Bench-scale

After establishing the reaction system through lab-scale verification, the process is further validated at the bench-scale (several kilograms). This stage involves addressing challenges during scale-up and acquiring engineering data. It allows for calculations of product yields and rough estimation of energy consumption.

PMMA分解マイクロ波パイロット設備

Microwave general-purpose bench equipment for pyrolysis：Processing capacity: Approximately 5 kg/h.

プラスチック分解マイクロ波汎用パイロット設備 処理能力：1t/day程度

Microwave general-purpose bench equipment for pyrolysis：Processing capacity: Approximately 5 kg/h.

03 Pilot-scale

After establishing the reaction system and operating conditions through bench-scale verification, the process is further validated at the pilot-scale. This stage involves optimizing operating conditions and is typically conducted at approximately 1/5 to 1/20 scale of the actual equipment. Successful validation at the pilot-scale leads to the final design of the full-scale equipment.

PMMA分解マイクロ波パイロット設備

Microwave pilot equipment for PMMA decomposition

プラスチック分解マイクロ波汎用パイロット設備 処理能力：1t/day程度

Microwave general-purpose pilot equipment for plastic decomposition Processing capacity: Approximately 1t/day
